TSI Supercool
SUPERCOOL HVAC LEAK STOP PLUS U/V DYE
SUPERCOOL HVAC LEAK STOP PLUS U/V DYE
Regular price
₩33,000 KRW
Regular price
₩46,000 KRW
Sale price
₩33,000 KRW
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SUPERCOOL HVAC LEAK STOP PLUS U/V DYE
" Certified by ISO 9001 "

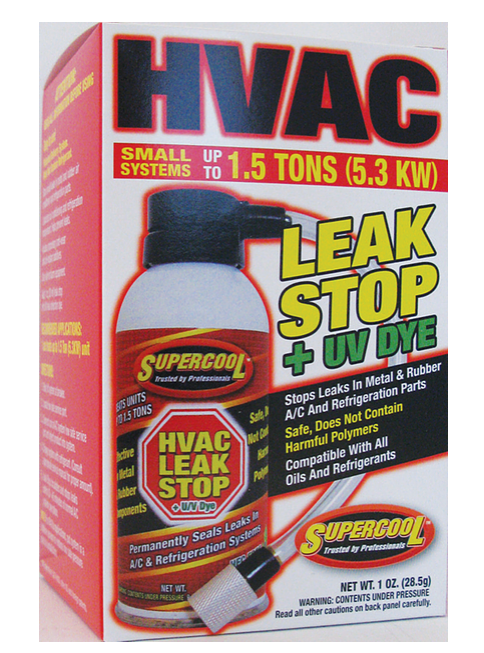

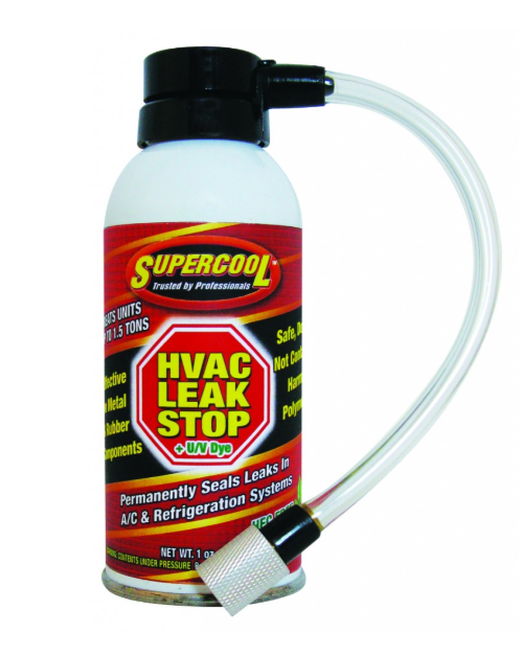

Leak Stop 1oz #28320B
![](https://cdn.shopify.com/s/files/1/0783/3026/5876/files/image_480x480.png?v=1689430958)
![](https://cdn.shopify.com/s/files/1/0783/3026/5876/files/image_3_480x480.png?v=1689431023)
Applied refrigerant and scope of use
HCFC Free / HFC Free / R600a
~7.5 HP per can (unit capacity)
Up to ~1.5 Ton per 1 can (cooling capacity)

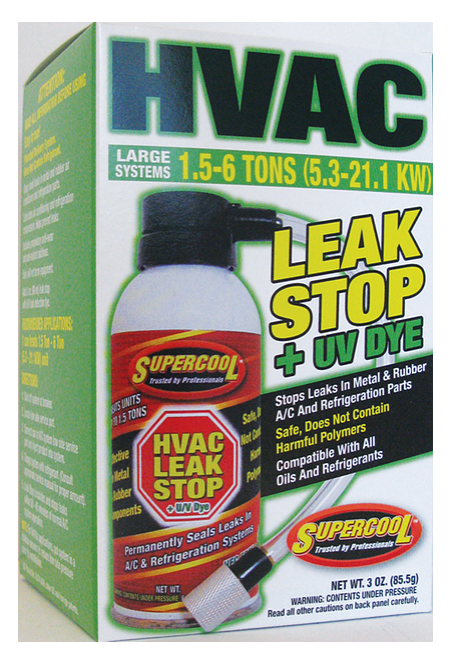

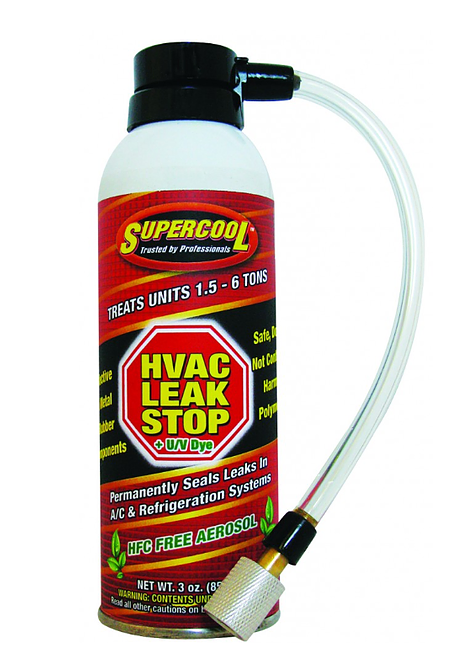

Leak Stop 3oz #28337B
Applied refrigerant and scope of use
HCFC Free / HFC Free / R600a
7.5 HP ~ 28 HP per 1 can (Unit capacity)
1.5 Ton ~ 6 Ton per 1 can (cooling capacity)
Product Specifications
Recognized for its excellence in the world market as an ISO9001 certified product
Composed of environmentally friendly materials (colored, odorless)
A mixture with fluorescent dyes added to find and permanently seal fine leaks
It is not activated by air and moisture, so no corrosion occurs in the sealed area
Since it remains in the system, it permanently seals additional minute leaks
Finding and permanently sealing the micro-leakage area of about 30% of the refrigerant injection amount per month
Permanently seals leaks after 30 to 45 minutes of system operation after injection
How to use
1. After stopping the system, minimize the low pressure and perform vacuum work or pump down.
2. Place the injection hose downward and connect it to the low pressure line.
3. Press lightly as shown in the picture to push the yellow liquid to the end of the lake to remove air.
4. After removing the air, press hard to inject it into the system.
5. After injection, the refrigerant is charged to maintain and operate the normal pressure in the system.
